Description

Description

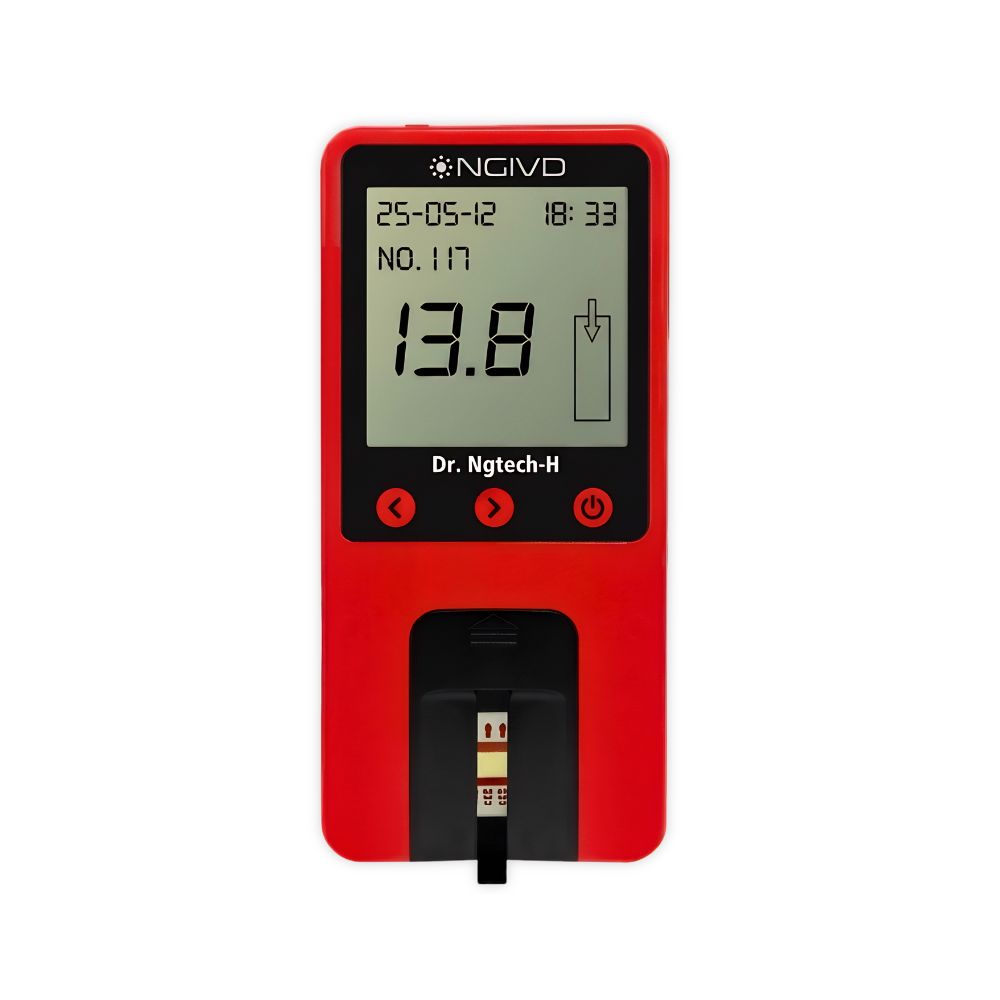

Dr. Ngtech-H Hemoglobin Meter is an in vitro diagnostic device that is used for quantitative testing of total hemoglobin in the blood. It is versatile among the most precise and affordable hemoglobin meter. Dr. Ngtech-H is an instrument used to determine the hemoglobin content of the blood by absorbance spectroscopy. Dr. Ngtech-H is useful in emergencies due to its accuracy, ease-of-use, accuracy, and fast delivery of results.

Key Features

• Bluetooth
• USB data transfer
• Low sample volume
• Light weight
• High accuracy
• Easy to use

General Specifications

• Methodology: Reflectance Photometry
• Test Time: Less than 15 seconds
• Meter Size: 150 mm × 80 mm × 35 mm
• Weight: 71 g (without batteries)
• Working Humidity: 5–95%obin content analysers
• Capabilities: USB Data Transfer to PC and Printer
• Strips (Working Environment): Working Temperature 2–40°C and Humidity 5 – 95%
• Strips (Storage Environment): Storage Temperature 2–40°C and Humidity 5 – 95%
• Strips Shelf Life:‎ 24 Months
• Sample: Whole blood (Capillary, Venous, Arterial)
• Units of Measure: g/dL, g/L, mmol/L

Technical Specifications

• Sensitivity: More than 80%
• Specificity: More than 80%
• Sample Volume:‎ 10 µL
• Bias (Limits of Agreement):‎ 0.5 g/dL (±1gm/dL)
• Accuracy:‎ 98%
• Reproducibility:‎ CV: < 3%
• Measurement Range: 0–25.6 g/dL, 0–256 g/L, 0–15.9 mmol/L
