Description

Product Description

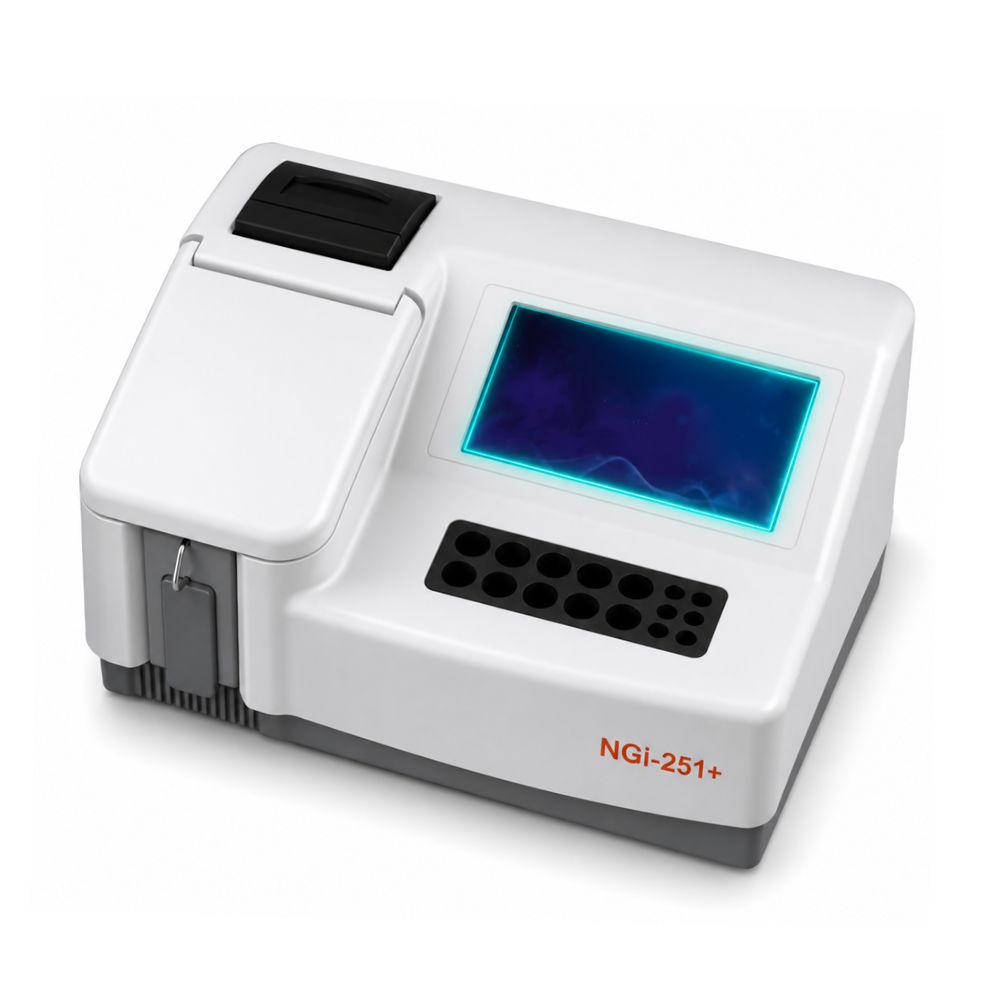

The NGi-251+ Semi-Automatic Biochemistry Analyser is an innovative and versatile diagnostic solution designed for small to medium-sized laboratories. Combining precision optics, intelligent software, and a compact footprint, it delivers accurate and reliable biochemical testing across a wide range of routine and specialized assays.

Equipped with a 7″ color touchscreen, advanced test modes, built-in incubation, coagulation testing capability, and a high-performance quartz flow cell, the NGi-251+ offers the flexibility and efficiency required for modern laboratory workflows while maintaining exceptional analytical accuracy.

Key Features & Benefits

1. 7″ Smart Touchscreen Interface

• • 7″ color TFT touchscreen display.
  • Windows Embedded operating system.
  • User-friendly navigation and workflow management.

2. Extensive Test Menu

• • Supports over 300 programmable test methods.
  • Suitable for routine and specialized biochemistry assays.
  • Flexible method customization.

3. Advanced Testing Modes

• • End Point, Two-Point End Point, Kinetic and Fixed-Time analysis.
  • Dual wavelength measurement capability.
  • Multi-standard calibration support.

4. High-Precision Optical System

• • Quartz flow cell with excellent optical performance.
  • High-resolution absorbance measurement.
  • Accurate and reliable analytical results.

5. Built-in Incubator & Temperature Control

• • Peltier-controlled temperature system.
  • Selectable incubation temperatures: 25°C, 30°C and 37°C.
  • Stable reaction conditions for enhanced accuracy.

6. Coagulation Testing Capability

• • Supports coagulation assays (optional).
  • Expanded testing versatility for laboratories.

7. Integrated Thermal Printer

• • Built-in thermal printer with 57 mm paper support.
  • Instant result printing and reporting.

8. Large Memory Capacity

• • Stores over 300 test programs.
  • Up to 200,000 patient results storage.
  • Efficient data management and retrieval.

9. Compact & Efficient Design

• • Ideal for small and medium laboratories.
  • Space-saving footprint without compromising performance.
  • Reliable daily operation with minimal maintenance.

Technical Specifications

Parameter	Specification
Test Methods	1 Point End, 2 Point End (Sample Blank), Kinetics, Fixed-Time, Coagulation (Optional)
Optical System	7 Standard Filters: 340, 405, 450, 505, 546, 578, 630 nm + 2 Optional Filters
Display	7.0″ TFT LCD Touchscreen (800 × 480 Pixels)
Printer	Built-in Thermal Printer, 57 mm Paper
Flow Cell	32 μL, 10 mm Optical Path
Resolution	0.0001 Abs
Photometric Range	0.0000 – 4.0000 Abs
Processor	ARM Cortex-A8, 800 MHz
Memory & Storage	4 GB Memory, 300+ Programs, 200,000 Results
Operating Environment	Temperature: 10°C–30°C; Humidity: 30%–85%
Power Supply	AC 100–240V, 50/60 Hz



Ideal Applications

• Clinical Laboratories
• Diagnostic Centers
• Physician Office Laboratories
• Small & Medium Hospitals
• Routine Biochemistry Testing
• Specialized Chemistry Analysis
